Product Details:
|
HK-100-5L--Signal (AB-A-B),voltage(5V),Pulse(PPR)100 is suitable for the number of fanuc,macro,wide,Bejing carved,bao yuan,Anew generation of Siemens,send into,Kane
emperor,the xing --such as.
HK-25-12E-signal (A,B),voltage(12v)pulse(25 PPR)is suitable for mitsubishi system,etc. Note:The currentmarket cansee the system,this handwheel is applicable.
Special note:Theencoder voltage is DC5-24V(such as Mitsubishi system is DC12V,other such as Widenumber/Fanak/Siemens/Farge system is DC5V,PLC controlis 24V),the wrong voltage or the wrong line will cause the encoder to burn out,please note
Production Parameter:

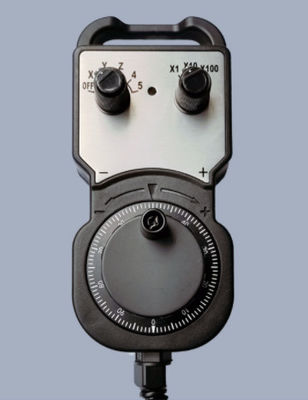

| Product nam | HK seres electronic handwheel |
| Model | HK-100-5L ,HK-25-12E |
| Product size | 138*72*34(mm) |
| The core components | UFO(5V100PPR)(12V25PPR)/ |
| Japan intemal secret control UFOseres pulse(5V100PPR)(12V25PPR) | |
| Band switch | (ALPS)lmported fromJapan(ALPS) |
| Shaft to choose OFF,X Y,Z,4.5,6, | |
| Multiplying powerX1X10X100 | |
| Adsorption manner | |
| With magnet adsoption,hooksupport protection(according to user's choice) | |
| Complete spare parts | |
| Induding high-grade hook,induding straightening 55meters anti-oil spira | |
| padkaging box mana | |
| LED visibleindicator | Green |
| Noise immunity | EN50082-2 standard |
| Waranty period | 12months |
| Net weight | 600.3g |
| Gross weight | 7086g |
| System selection | HK-100-5L:(5V,100PPR) |
| HK-100-5L:(5V.100PPR Suitable for fanuc and other svstemg | |
| HK-25-12E(12V,25PPR) | |
| HK-25-12E(12V,25PPR) suitable for mitsubshi and other systems |
