Product Details:
|

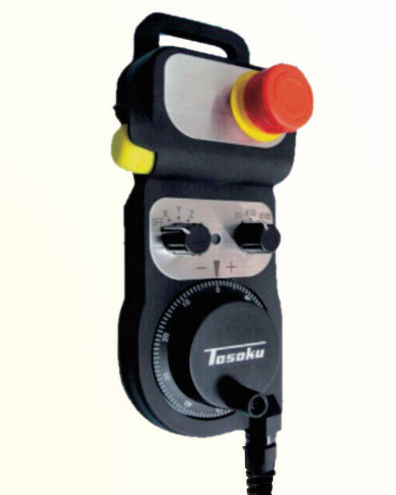

| Product name | Future Emergency Stop Electronic Handwheel |
| Model | TOSOKU HT Series |
| Product size | 155*70*30mm(including Hang handle |
| '/The core components | Photoelectric all-metal pulse |
| /The option to switch | (ALPS/Imported from Taiwan (ALPS) |
| Shaft to choose OFF,X,Y,Z,4,5,6, | |
| Multiplying power X1 X10X100 | |
| /Adsorption manner | With strong magnetic adsorption |
| /Cable | 1.6M. straighten5.5M/ |
| Static 1.6 meters, straightening 5.5 meters oil resistant spiral | |
| /Complete spare parts | 5.5,,,/ |
| Contains 5.5 m oil-resistant spiral wire, hook, packing box, instmction manual | |
| LED/LED visible indicator | Green |
| /Noise immunity | EN50082-2/EN50082-2 standard |
| Warranty period | 12 months |
| /Net weight | 710.3g |
| Gross weight | 818.7g |
| /System selection | 5V-100PPR:SP,, |
| 5V-100PPR: Suitable for Fanuc, Siemens, Wide number and other systems | |
| 12V-25PPR: MITSHUBISH |
