Product Details:
|

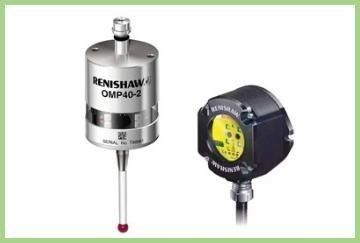

The original Renisho wireless probe OMP40-2 is an ultra-small 3D triggered workpiece detection probe, which uses optical signal transmission. It is suitable for workpiece detection and alignment in small and medium sized machining centers, multi-purpose turning and milling centers, composite machine tools and CNC milling machines. Complex 3D surface in machine inspection. The product is resistant to optical interference, false trigger and vibration.
| Product parameters |
| Product Name | Renishaw optical probe |
| Product Model | OMP40-2 |
| Repeated positioning accuracy | 0.001mm |
| Signal transmission mode | 360.infrared optical transmission |
| TriggerDir | ±X,±Y,+Z |
| Power Supply | 3.6V(LTC)/3.6V lithium thionyl Chloride Cell (LTC) |
| Probe diameter | 40mm |
| Probe length | 50mm |
| Measure speed | 1000rev/min |
| Maximum over travel | XY±12.5°, Z6mm |
| Trigger force | Adjustable |
| RIG MODE | Contact |
| Trigger life | >10000000> 10 million times |
| Protection grade | IP68: EN60529 |
| Weight(exduding handle) | Contain the battery/250g |
| No batteiies/234g | |
| Applicable Industry | CNC machine tools, mold industry mobile phone industry, aerospace, electronic field, industrial machinery rail train, etc |
