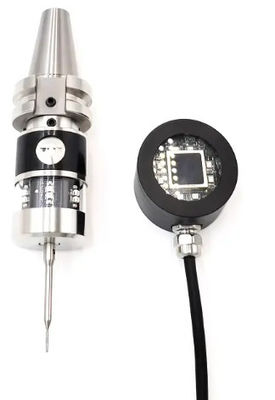

Cnc Machine Tools Wireless Probe Mdp40 Mdp40 Stainless Steel Infrared Wireless Probe X Y Z Sensor With 14250 Lithium Bat
Description
Products Description
The MDP40 wireless probe uses optical signals, radio signal transmission, and can be installed on most CNC lathes, machining centers, CNC grinders, and other CNC machine tools. In the machining cycle without human intervention, directly on the tool or workpiece size and position measurement, and automatically correct the workpiece or tool offset, so that the same machine tool can be machined to a higher precision parts. Substantially reduce the parts scrap rate and rework rate, 3C high-gloss chamfering products more uniform and symmetrical. Designed to improve machining accuracy and efficiency, our automated systems deliver significant cost savings and quality improvements.
Product Paramenters
Product name
Wireless probe for CNC machine tool
Product model
MDP40
Repeatability accuracy
0.001mm
Signal transmission mode
Unlimited electricity / infrared
Trigger direction
±X, ±Y, -Z
power supply
14250 lithium battery (3.6V)
Body material
stainless steel
Probe outer diameter
41mm
Probe length
50mm
Measure speed
<500mm/min
Maximum pass
XY±12.5°, Z 6.35mm
Trigger force
Adjustable
Trigger mode
Contact
Working temperature
-10-60°C
Ingress protection
IP68:EN60529
Net weight
1011g
Gross weight
1685.8g
Application industry
CNC machine tools, mold industry, mobile phone industry, aerospace and aviation electronics field, industrial machinery, rail trains, etc.
