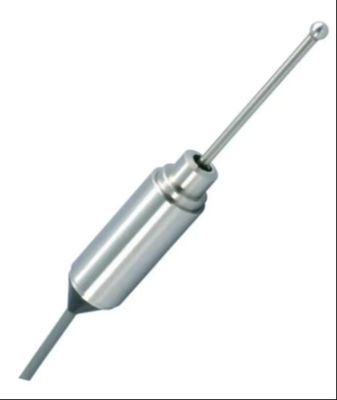

Ac1000v Wired Probe Type Sensor 0.02mm Probing Contactor Measuring Probe For Cnc Equipment Ztsx1
Description
Product Paramenters
Supply Voltage
DC5~24V
Stroke
4mm(360°)
Operating force
H:1N
J:0.3N
Work point position [PT]
1.5±1mm
Differential [MD]
0.1mm以下
Repeat positioning accuracy
0.02mm
Output method
NPN normally open (ON for proximity)
Output current
ZTSX1 :15mA MAX
ZTSX1-LED:12mA MAX
Current consumption
ZTSX1:12mA MAX
ZTSX1-LED:15mA MAX
Operating Frequency
Less than 20 times/min
Withstanding Voltage
AC1000V
(1 minute, between the whole charging part and the case)
Insulation antibody
DC250V
(20MΩ or more, between the whole charging part and the case)
Operating ambient temperature
-20°C~+85°C (no condensation)
Working environment humidity
20~95%RH
Wire specification
Φ2.8*1m
Material
SUS303
Indicator light
ZTSX1
None
ZTSX1-LED
Approx. 100mm from the sensor body
Protection class
IP65
