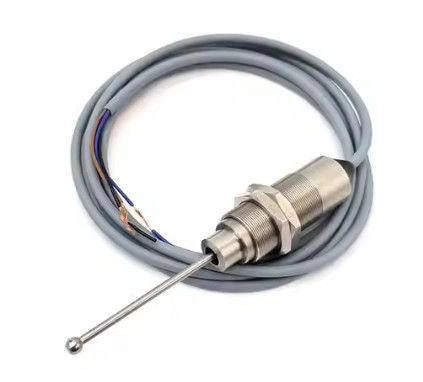

CERTIFIED 360 DEGREE INSPECTION PROBE WITH RED INDICATOR FOR CONTACT SENSOR TOOL MEASUREMENT ON CNC MACHINES ZTSX1M
Description
Product Paramenters
Supply Voltage
DC5~24V
Stroke
4mm (360°)
Operating force
H: 0.8N
J:0.3N
Work point position [PT]
1.5±1mm
Differential [MD]
Below 0.1mm
Repeat positioning accuracy
0.02mm
Output method
NPN normally open (ON when close)
Output current
12mA MAX
Current consumption
15mA MAX
Operating Frequency
20 times/minute or less
Withstanding Voltage
AC1000V
(1 minute, between the whole charging part and the case)
Insulation resistance
DC250V
(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature
-20°C~+85°C (no condensation)
Working environment humidity
20~95%RH
Wire specification
Φ2.8*1m Gray
Housing/Shaft Material
SUS303
Nut/Ball Material
SUS303
Mounting
M14 nut, tightening torque below 18N-m
Mounting hole processing size
Φ14＋0.5 / 0
Indicator light
Red color
Protection class
IP65
Note:High-precision sensors for measuring DC and AC pulses and any kind of irregular currents under isolation conditions. The products can be used in new energy fields, semiconductors and other electronic mate
