Product Details:
|

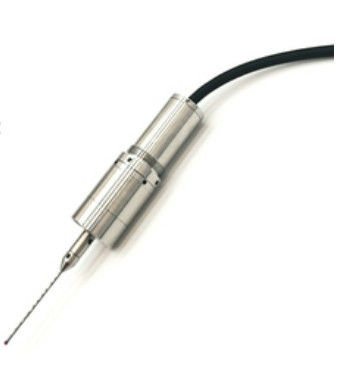

Cable probe MP25-1 series, scope of application is applied to the numerical control machining center, milling machine, lathe, grinding machine, machine, engraving machine carved machine, highlight parts of the batch processing areas, etc., and CNC machine tools continue to real-time communication cable connection way, probe measurement signal through the real-time output cables to the numerical control system, a dedicated macro program can realize automatic measurement.
| Product name | Cable probe |
| Product model | MP25-1 |
| Repeated positioning accuracy | <0.001 mm (The probe: 50mm,speed: 50-200mm/min) |
| Signal transmission mode | Cable |
| Measure needle sensing direction | ±X,±Y+Z |
| Departure protection itinerary | ± 12.5° Xy plane and 6.35mm in Z direction |
| Measurement speed | ^5m/min |
| Trigger life | 10 million times or more |
| Body material | Stainless steel 316 |
| Cable specifications | 5mm/Standard configuration 5m oil resistance 4 core 5mm |
| Protection grade | IP68 (double seal) |
| The power supply | 12~ 30VDC |
| Working temperature | 10°C~40°C |
| Storage temperature | -20°C-70°C |
| Indicator light | With LED indicator light |
| Net weight | 327g |
| Gross weight | 61 Og |
| Quality assurance | 12 months |
