Product Details:
Place of Origin: China
Brand Name: MP
Certification: CE GS
Model Number: ML25-PLUS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD285-USD305
Packaging Details: carton or wooden pack
Delivery Time: 2-3days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000unit/month

High Precision 0.001mm Cnc Machine Tool Wired Probe Ml25-plus

Description

Products Description

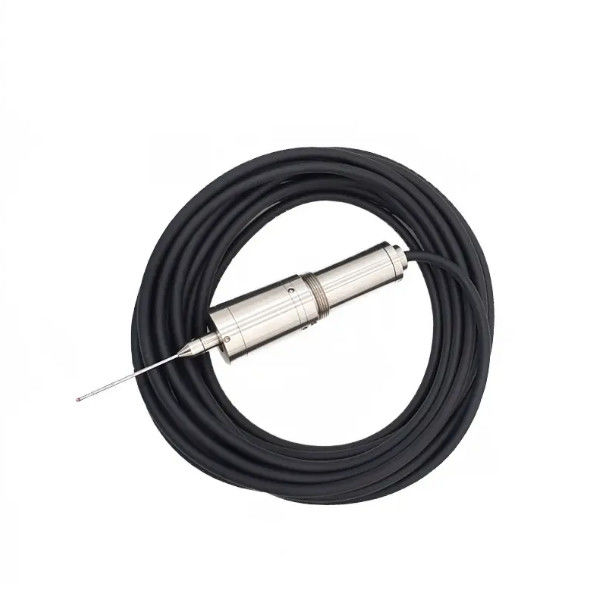

The ML25-PLUS probe can completely replace Renishaw, Mabus wired probe, mainly used for CNC machining centers, milling machines, grinding machines, precision engraving machines, such as online measurement, (another can be used as a sensor.) The cable connection allows real-time communication with the CNC machine tool. The measurement signal from the probe is output to the CNC system in real time via the cable, and can be used with a dedicated macro program to achieve automatic measurement.
Product Paramenters
Product Name
Corded probes (full replacement for Renishaw and Mabus)
Product Model
ML25-Plus
Repeat Positioning Accuracy
0.001mm (conditioned operating speed 30-120mm/min)
Signal transmission method
Cable
Stylus sensing direction
X, ±Y, Z
Maximum stroke
5mm
Trigger life
10 million times
Contact strength
1N
Body material
304 stainless steel
Stylus material
Super hard alloy (configurable according to usage requirements)
Side Head Length
81mm (excluding stylus length)
Cable Size
Standard 1m oil resistance (length can be customized)
Contact rating
DC24V
Protection Rating
IP68
Indicator Lamp
Without indicator
Net Weight
160g
Gross Weight
293g
Warranty
12 months
