High Precision Wired Probe Sensor With Led Indicators Mp25-1

I'm Online Chat Now

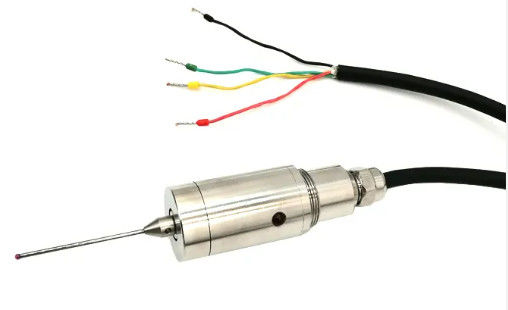

High Precision Wired Probe Sensor With Led Indicators Mp25-1

High Precision Wired Probe Sensor With Led Indicators Mp25-1
High Precision Wired Probe Sensor With Led Indicators Mp25-1

Large Image :  High Precision Wired Probe Sensor With Led Indicators Mp25-1

Product Details:
Place of Origin: China
Brand Name: MP
Certification: CE GS
Model Number: MP25-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD520-USD650
Packaging Details: carton or wooden pack
Delivery Time: 2-3days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000unit/week

High Precision Wired Probe Sensor With Led Indicators Mp25-1

Description

Product Description

Product NameWired Probes
Product ModelMP25-1
Repeat Positioning Accuracy≤0.001mm (Probe: 50mm, Speed: 50~200mm/min)
Signal transmission methodCable
Stylus sensing directionX, ±Y, +Z
Departure protection strokeXY plane 12.5°, 2-way 6.35mm
Measuring speed<5m/min
Trigger life≥10 million times
Body materialStainless steel 316
Cable specificationStandard 5 meters Oil-resistant 4-core Φ5mm
Protection classIP68(double sealing)
Power supply12~30VDC
Operating Temperature10℃ to 40℃
Storage Temperature-20℃ to 70℃
Indicator LightWith LED indicator
Net Weight327g
Gross Weight610g
Warranty12 months

Wired probe MP25-1 series, suitable for use in CNC machining centers, milling machines, lathes, grinders, precision engraving machines, high-gloss machines, engraving machines, batch processing of parts in the field, etc., with a cable connection with the CNC machine tool to continue to communicate in real time, the measurement signals of the probe through the cable to the real-time output to the CNC system, with a special macro program can be realized automatically.


Product Parameters


Universal IP68 stainless steel 316 CNC machine tool high precision wired probe sensor with LED indicators MP25-1

Universal IP68 stainless steel 316 CNC machine tool high precision wired probe sensor with LED indicators MP25-1
