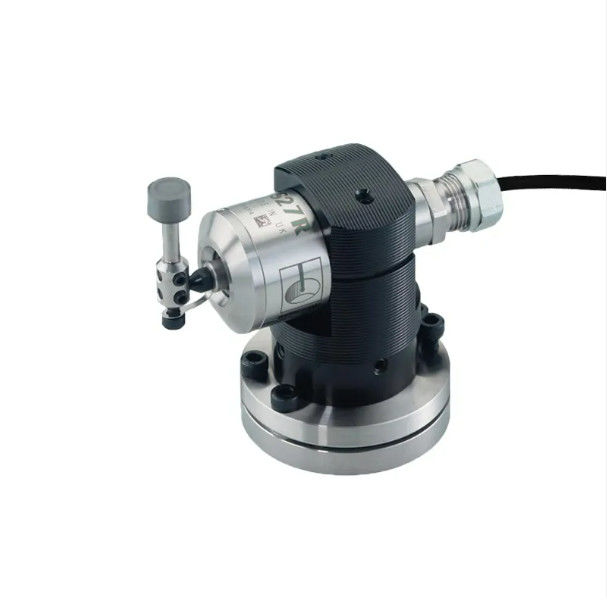

Renishaw Five Direction Tool Setting Instrument Ts27r
Description
Products Description
The Renishaw five-direction Tool Setting Instrument Ts27r is used for CNC machine tools, CNC machining centers, cutting tools, tool length, tool diameter, offset measurement, tool breakage detection, tool positioning, wear and fracture detection. Is a variety of models of vertical, horizontal and gantry machining centers tool-specific measurement system, using a cable connection with the CNC machine tool to continue real-time communication, the probe's measurement signals through the cable real-time output to the CNC system, with a dedicated macro program. Alarm signals are generated when travel is exceeded, preventing breakage accidents!
Product Paramenters
Product Name
Renishaw five-direction tool setting instrument
Product Model
TS27R
Brand name
Renishaw
Output Mode
Hardwired transmission
Contact Diameter
14-20mm
Receiver/Interface
M18-4 or HSI
Recommended styli
Disk styli or square styli
Pre-travel
0
Measuring direction
±X, ±Y,+Z
Repeatability
0.001mm (condition: operating speed 50-200mm/min)
Contact life
3 million cycles
Protection structure
IP68
Contact force
1.3-2.4N (depending on sensing direction)
Material of contact part
Tungsten steel/ceramic
Surface treatment
Ground 4S mirror
Cable
Standard 10m(4.35mm diameter, 4 core shielded cable)
