Product Details:
|

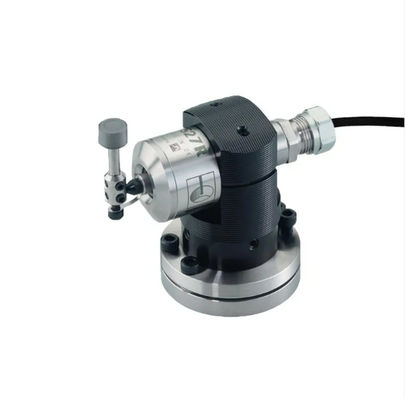

The Renishaw five direction tool setting instrument is used for CNC machine tools CNC machining center, tool, tool length, tool diameter, skew measurement, broken tool detection, tool positioning, wear, damage detection. It is a special measuring system for various types of vertical, horizontal and gantry machining centers. It adopts wire and cable connection to continue real-time communication with CNC machine tools, and the measuring signal of the probe is output to the CNC system through the cable in real time, with the special macro sequence. Out of the trip will occur alarm signal, can prevent damage accidents!
| /Product name | Renishaw five direction tool setting instrument |
| /Model | TS27R |
| /Brand | Renishaw |
| /Output mode | Hardwire connection for transmission |
| /The contact diameter | 14-20mm |
| Receive/interface | M18-4 orHSI/M18-4orHSI |
| SliRecommend measuring needle | Disc needle or square needle |
| /Pretravel | 0 |
| /Direction of measurement | ±X, ±Y, +Z |
| /Repeatability | 0.001 mm (Operating speed 50-200mm/min) |
| /Contact life | 300million times/3 million times |
| /Protection architecture | IP68 |
| /contact force | 1.3-2.4 Depends on the direction of induction) |
| Contact part material | 1 Tungsten steel/ceramic |
| Aspect processing method | Grinding 4S mirror |
| Cable | Standard configuration 10M (diameter 4.35mm, 4-core shielded cable) |
| Install | M12T bolt |
| Needle quality was measured with disc shape | 1055g |
| /Working Temperature | +5°C~60oC |
| /storage temperature | -10°C~+70°C |
