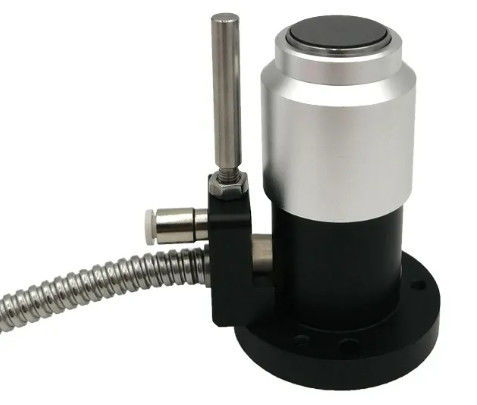

M26d-20 Automatic Tool Setting For Cnc Machine Centers
Description
The M26D-20 tool setting can completely replace the original Metrol TM26D-20. It is mainly used for CNC machining centers, engraving and milling machines, and high-gloss machine, glass and jade machine and other equipment tool measurement, wear and damage detection, detection and knife breakage detection; An alarm signal will occur when the stroke is exceeded, Breakage accidents can be prevented.
Product Paramenters
Product Name
Automatic Tool Setter
Model
M26D-20 (Aluminum)
Diameter of cutter face
20mm
The main body
Aluminum alloy
Contact site material
Superhard alloy
Surface treatment
Grinding 4S mirror
Output mode
Normally open/normally closed
Pre-trip
nothing
Stroke
5mm
Repeatability
0.002mm (condition: operating speed 50-200mm/min)
Contact life
3,000,000 times
Protecting the structure
IP67*100% waterproof and oil-proof sealing performance
Contact force
1.5N (installation must be vertical)
Contact rating
DC24V-20mA(MAX) (recommended value 10mA) resistive load Standard 5m oil resistant, 4.8 in 6 cores, tensile strength 30N, bend radius R7
Cable material
PVC
Protection tube
8mm 304 stainless steel 1.5m long
Indicator lights
Normally closed LED lights are on when working
Installation hole spacing
40mm
Net weight
406g
Gross weight
464g
Overtravel alarm signal
Output mode: NC normally closed (about 2.5mm from the detection signal) Contact voltage: DC24V-20mA(MAX) (recommended value 10mA) resistance load
