Product Details:
|
Product Parameters

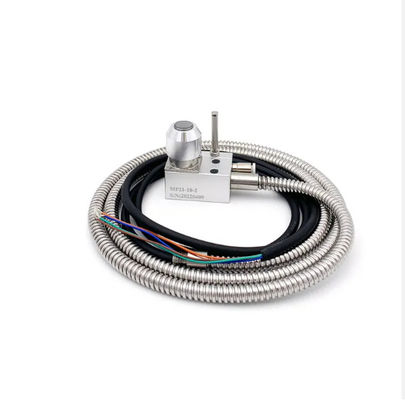

| Product Name | Automatic Tool Setter |
| Model | P21-10, P21-16 |
| Diameter of cutting surface | Medium 10, Medium 16 |
| Output Mode | NC normally closed type/N0 normally open type |
| Pre-stroke | Zero |
| Stroke | 5 |
| Repeatability | 0.001mm (Condition: Operating speed 50-200mm/min) |
| Contact life | 3 million times |
| Protection structure | IP67*100% waterproof and oilproof sealing performance |
| Contact force | 1.5N(Mounting condition must be vertical) |
| Contact part material | Tungsten steel |
| Surface treatment | Ground 4S mirror |
| Contact Nominal Value | DC24V-20mA(MAX)(Recommended value 10mA) Resistance Load |
| Cable | 2m oil-resistant 4-core 4.8 tensile strength 30N, minimum bending radius R7 |
| Protection Tube | 1m minimum bending radius R25 |
| Mounting hole distance | 10-12mm |
| Net Weight | 193g(default MP21-10 weight) |
| Gross Weight | 277g(default weight of MP21-10) |
| Over-travel alarm signal | Output Mode:NC Normally Closed (Distance to detection signal approx. 2.5mm) |
| Contact Voltage:DC24V-20mA(MAX)(Recommended value 10mA) Resistance Load |
