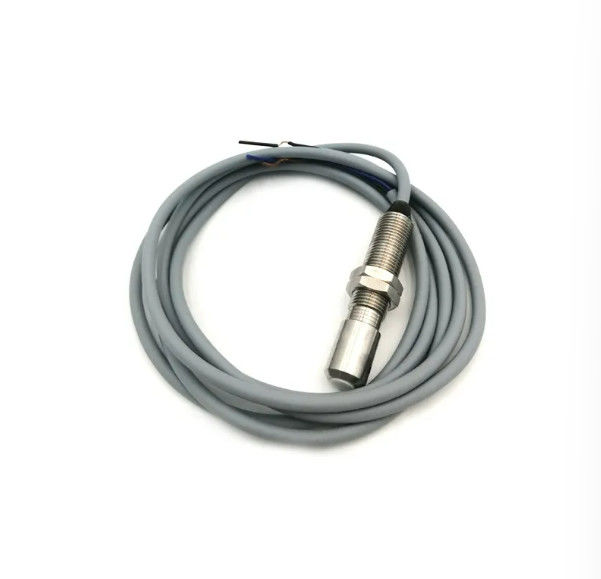

PLUNGER TOOL SETTING INSTRUMENT PTS15

I'm Online Chat Now

PLUNGER TOOL SETTING INSTRUMENT PTS15

PLUNGER TOOL SETTING INSTRUMENT PTS15
PLUNGER TOOL SETTING INSTRUMENT PTS15

Large Image :  PLUNGER TOOL SETTING INSTRUMENT PTS15

Product Details:
Place of Origin: Japan
Brand Name: METROL
Certification: CE GS
Model Number: PTS15
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD120.60-USD155.90
Packaging Details: hard box
Delivery Time: 2-3days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 5000unit/month

PLUNGER TOOL SETTING INSTRUMENT PTS15

Description

The plunger-type tool setting instrument (can be used as a contact sensor), mainly used for small mini engraving machine, dispensing machine, denture machine, dental carving machine, etc. Broken knife detection, tool wear and fracture detection.

Product Parameters


RepeatabilityPlunger Type Tool Setting Instrument
Repeatability0.001MM
Stroke3MM
Operating force0.6N
Motion Position0.2-0.5MM
ToleranceBelow 0.1MM
Power supply voltageDC5-24V
Output methodNPN normally open (N0.) (0N at proximity)
NPN Normally Closed (NC.) (0F at proximity) (Model No. End B)
Output airflow15mA MAX
Current consumption5mA MAX
Cable specification1M length, N.0: Gray; N.C: Black; Medium 2.8mm
Withstanding VoltageAC1000V 1min
Insulation resistanceDC250V≥20MQ
Indicator lightApprox. 100mm from main body
MaterialHousing/Nut/Shaft:SUS303
InstallationM8 nut mounting pitch 5N,m
Net Weight24g
Gross Weight25g
Protection classIP67 equivalent
Temperature-20℃~85℃(no condensation)
Humidity20~95%RH
