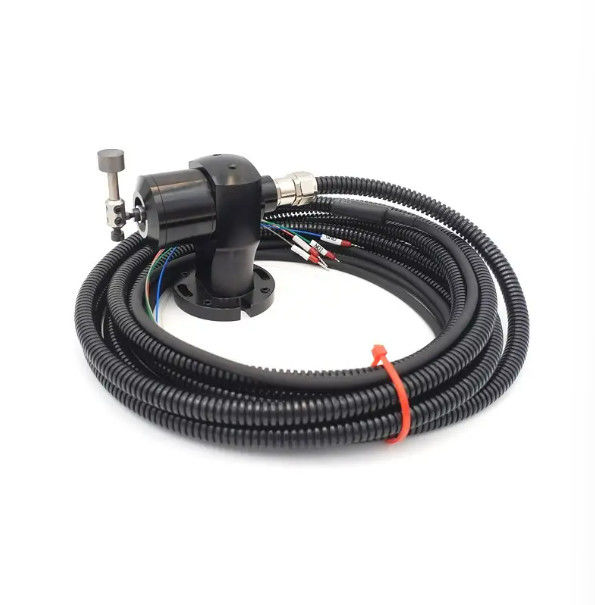

The MS27R Multi-directional tool setting probe, a contact type 3-dimensional tool setting probe, uses a cable to transmit electrical signals, and the measurement signals from the probe are output to the CNC in real time via the cable, together with a dedicated macro program. It is used to perform breakage detection on a wide range of tools as well as rapid measurement of tool length and diameter, automatic compensation and broken tool detection. Mainly used in various types of vertical and horizontal machining centers and various gantry machining centers.
Product Paramenters
Product Name
Five Direction Tool Setting Instrument
Product Model
MS27R
Output Mode
normally open
Transmission Mode
Hardwire connection transmission
Contact Diameter
14-20mm
Measuring direction
±X,±Y, +Z
Contact part material
Super hard alloy
Surface treatment
Grinding 4S mirror
Repeatability
0.001mm (condition: operating speed 50-200mm/min)
Contact life
>10 million times
Contact strength
XY plane 0.4N-0.8N, Z direction 5.8N (depending on sensing direction)
Protection structure
IP68
Stroke
XY plane 12.5°, 2-way 6.35mm
Pre-travel
None
Contact rating
DC24V~20mA(MAX) Recommended value 10mA Resistance load
Power supply
12-30VDC
Cable specification
Standard 5m (6.0mm diameter, 4 core shielded cable)
Protection Tube
2m
Precautions
Be sure to use it within the rated power range. (12-30VDC) Mounting base requires grounding protection or shielding.
