Product Details:
|

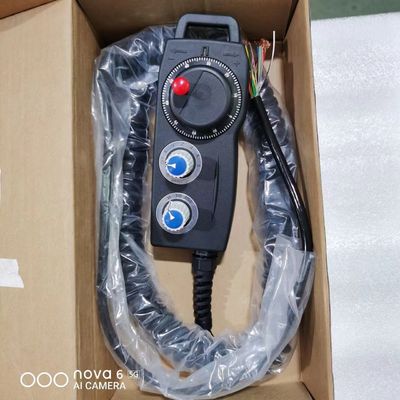

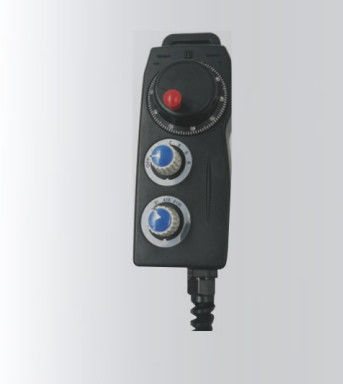

EHDW-BA4S-IM.EHDW-CA4S-IM: suitable for Fanuc system, axis X, Y, Z, 4;
EHDW-BD4S-IM, EHDW-CD4S-IM: suitable for Mitsubishi system, axis X, Y, Z, 4;
EHDW-BE4S-IM, EHDW-CE4S-IM: suitable for Siemens system, axis X, Y, Z, 4;
EHDW-BGBS-IM suitable for PLC system
(note 4 s on behalf of the shaft, such as: the number of 4 s = 4 axis and 5 s = 5 axis, 6 s = 6 axis -) system can be seen on the market at present we adapted the handwheel can be, under the specific reference such as: EHDW series is suitable for the number of fanuc, macro, wide, Beijing carved, Siemens, bao yuan, the new generation, the hair into, Kane emperor, the xing, mitsubishi and other systems.
TYPE | EHDW-BA EHDW-BB | EHDW-BG EHDW-BH | EHDW-BC EHDW-BD | EHDW-BE EHDW-BF |
Power Source | DC5V | DC24V | DC12V | DC5V |
Current Consumption | 50mA or Less | 70mA or Less | 50mA or Less | 150mA or Less |
Pules per a Revolution | 100PPR·25PPR | 25PPR | 100PPR·25PPR | |
Output Voltage | Within-1Power Voltage | +5V=10% | 2.5V or More | |
0.5V or Less | ||||
Max.Response Frequency | 5kHz | |||
Sign Rising&Falling Time | 1us or Less | 1.5us or Less | 200ns or Less | |
Max.Sinking Current | 200mA MAX | |||
| Product name | FUTURE electronic handwheel |
| Model | EHDW series |
| Product size | 124*73*26mm |
| Nominal voltage | |
| 5-24V (5V or 12V DC power supply system (24V is selected for PLC system)) | |
| Pulse count | 25PPR, 100PPR |
| Noise immunity | EN50082-2 standard |
| The option to switch | Shaft to choose OFF,X,Y,1,2,3,4,5,6, |
| Multiplying power X1 X1 OX100 | |
| Cable | Static is 1.8M,stretching up to 5M spiral |
| Protection class | IP67 |
| Complete spare parts | |
| Electronic handwheel, including high-grade hook, including 5 meters anti-oil | |
| helix, manual | |
| Warranty period | 12 months |
| Net weight | 647g |
| Gross weight | 805.6g |
| System selection | |
| The handwheel can be equipped with the | |
| following systems: Fanuc, Siemens, Mitsubishi, Kandi, Guangzhou CNC, Baoyuan | |
| ,New generation, Henak, Kaihua, Fagen, Heide Han, Sikai, Huaxing, Huazhong, | |
| Dasen, Aerospace, Guangtai, Weihong and other CNC control systems |
