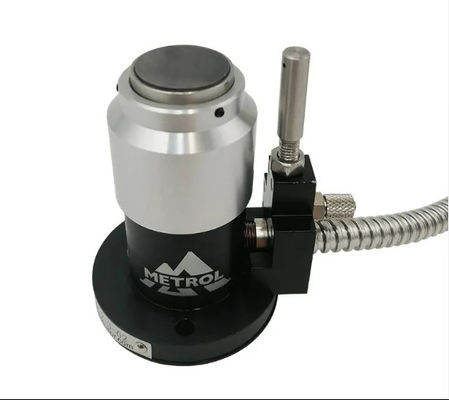

METROL TOOL SETTING ULTRA PRECISION POSITION HEIGHT SENSOR FOR CNC MACHINING TM26D-2-3-02
Description
Products Introduction
Highly versatile, widely installed on general-purpose equipment and robots in various industries. High-precision positioning can be realized even in harsh environments with splashing water and coolant, contributing to cost reduction, productivity improvement, and defect improvement.
Product Paramenters
Product Model
TM26D
Diameter
20
Surface processing
Grinding 4S
Counterbore Material
Super hard alloy
Default form of tool setting
NC Normally Closed/NO Normally Open
Pre-travel
5
Stroke
No
Repeat Positioning Accuracy
0.001MM
Contact accuracy life
3 million times
Protection level
IP67*100% waterproof and oilproof sealing performance
Contact strength
1.5N (mounting status must be vertical)
Contact rating
DC5V-DC24V steady state current below 10MA, burst current below 20MA; need to limit the current so as not to flow into the LED more than 10MA current
Cable specification
Standard 5M oil (length can be customized), 6-core Ф4.8, tensile strength 30N, bending radius R7
Protection Tube
2.5M minimum bending radius R25
Indicator light
Normally closed LED light is on when working
Mounting hole distance
40MM
Over-travel alarm signal
Output mode
NC normally closed (distance from detection signal about 2.5MM)
