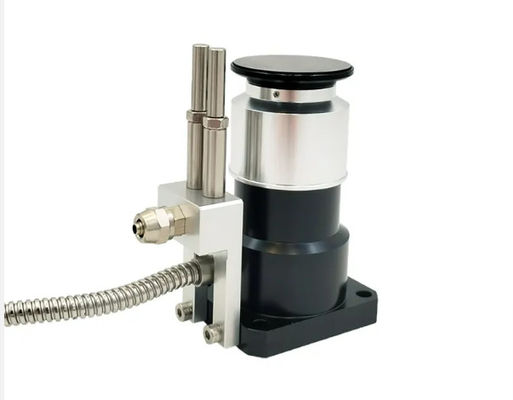

T24E-40/60 CNC TOOL SETTING GAUGE HEIGHT SENSOR WITH 40/60MM SETTING FACE FOR MILLING MACHINE TESTING MEASURE

T24E-40/60 CNC TOOL SETTING GAUGE HEIGHT SENSOR WITH 40/60MM SETTING FACE FOR MILLING MACHINE TESTING MEASURE
T24E-40/60 CNC TOOL SETTING GAUGE HEIGHT SENSOR WITH 40/60MM SETTING FACE FOR MILLING MACHINE TESTING MEASURE

Large Image :  T24E-40/60 CNC TOOL SETTING GAUGE HEIGHT SENSOR WITH 40/60MM SETTING FACE FOR MILLING MACHINE TESTING MEASURE

Product Details:
Place of Origin: Japan
Brand Name: METROL
Certification: GS CE
Model Number: T24E-40/60
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD220-USD365
Packaging Details: carton
Delivery Time: 2-3days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 300unit/week
Contact Now

T24E-40/60 CNC TOOL SETTING GAUGE HEIGHT SENSOR WITH 40/60MM SETTING FACE FOR MILLING MACHINE TESTING MEASURE

Description

Products Description

The tool setting instrument is a square base, to the tool surface of 40mm, 60mm, mainly for CNC machining centers engraving and milling machine tool measurement, wear and tear, fracture detection; beyond the stroke will occur when the alarm signal, can prevent breakage accidents. Applicable to China, Japan, Taiwan, South Korea and other machining centers engraving machine and a variety of numerical control CNC control machinery.

Product Paramenters
Product Name
Precision Automatic Tool Setting Instrument
Product Model
T24E-40/60
Signal output
Normally open/closed
Counterbore Diameter
c40mm, c 60mm
Material
Tungsten steel
Surface treatment
Grinding 4S mirror
Repeatability
0.001mm (condition: operating speed 50-200mm/min)
Contact life
3 million times
Contact strength
2.5N(Mounting condition:Vertical)
Pre-travel
No
Stroke
12mm
Contact rating
DC24V~20mA(MAX) Recommended Value 10mA Resistance Load
Cable Specification
Standard 5m (customizable)6 core 4.8 tensile strength 30N,minimum bending radius R7
Cable Sheath
Standard 1.5m (can be customized) minimum bending radius R25
LED Lights
Normally closed, open at work
Waterproof Rating
IP68*100% waterproof, oilproof sealing performance
Net Weight
Middle 40:1002g;Middle 60:1147.0g
Gross Weight
Medium 40:1081g;Medium 60:1282.4g
Overtravel Alarm Signal
Output Mode:NC/Normally Closed(Emergency stop when signal is disconnected/Normally Open can be ordered)
Contact Voltage:DC24V/20mA resistive load
(Load and current limitation are required in special cases)
